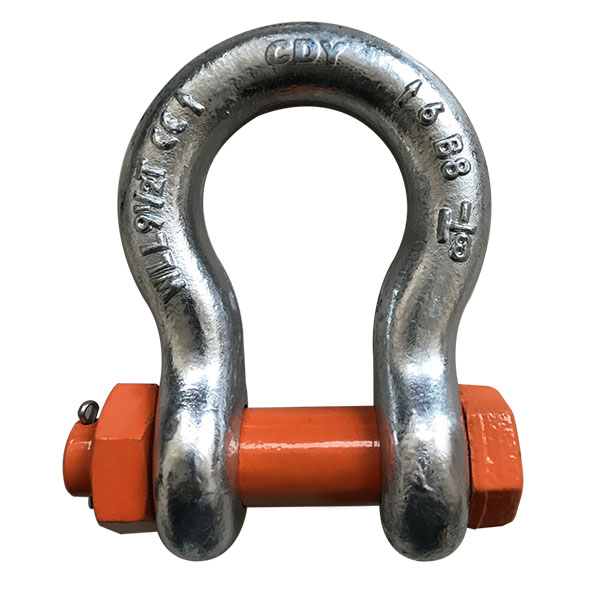

U.S. BOLT SHACKLES WITH SAFETY PIN Bolt-type anchor shackles with cotter pin
U.S. BOLT SHACKLES WITH SAFETY PIN Bolt-type anchor shackles with cotter pin

U.S. BOLT SHACKLES WITH SAFETY PIN Bolt-type anchor shackles with cotter pin

• G-2130 Bolt Type Anchor shackles with thin head bolt-nut with cotter pin.

• Meets the performance requirements of Federal Specification RR-C-271F

  Type IVA, Grade A, Class 3

• Maximum Proof Load is 2.2 times the Working Load Limit,

  with a minimum break force 6 times the working load limit.

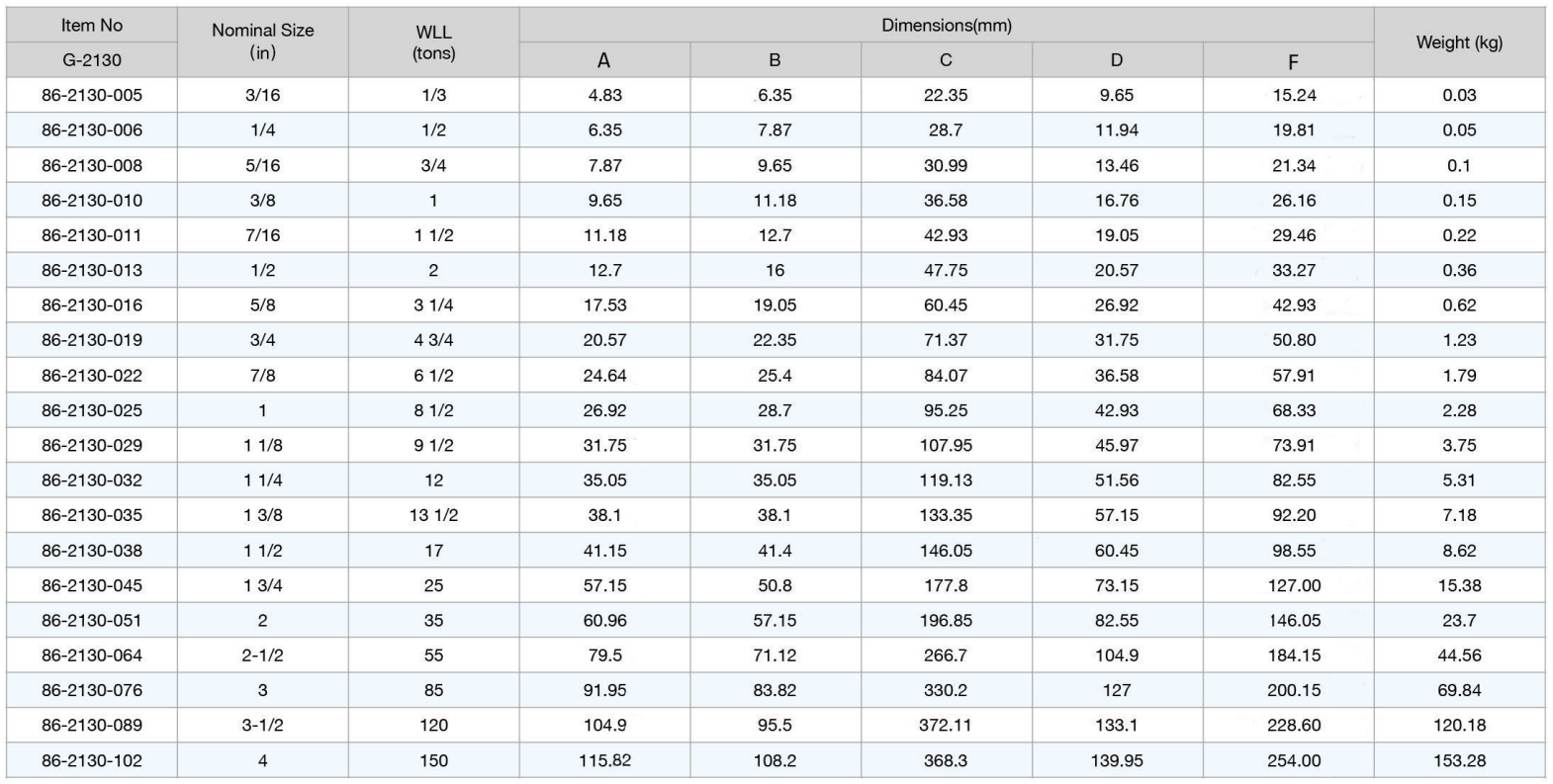

• Capacities 1/3 thru 150 metric tons.

• Forged - Quenched and Tempered, with alloy pins.

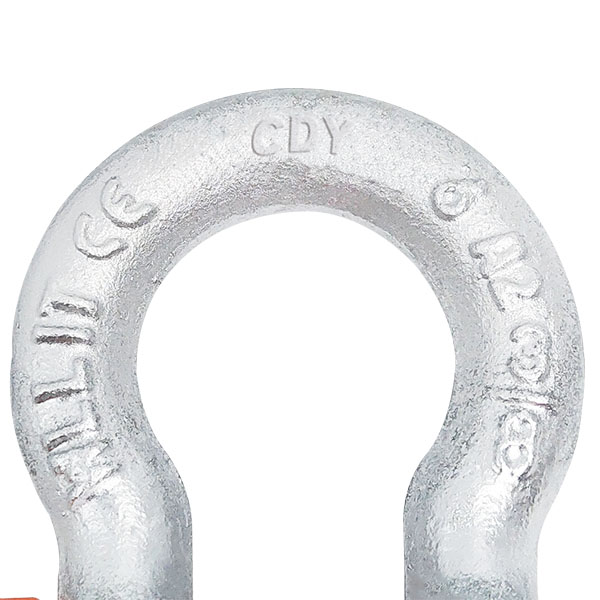

• Working Load Limit and grade “6” permanently shown on every shackle.

• Hot Dip galvanized or self colored.

• Fatigue rated.

• Shackles can be furnished proof tested with certificates to designated standards

  Charges for proof testing and certification available when requested at the time of order.

• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg.

  at -20 degrees C (-4 degrees F).
