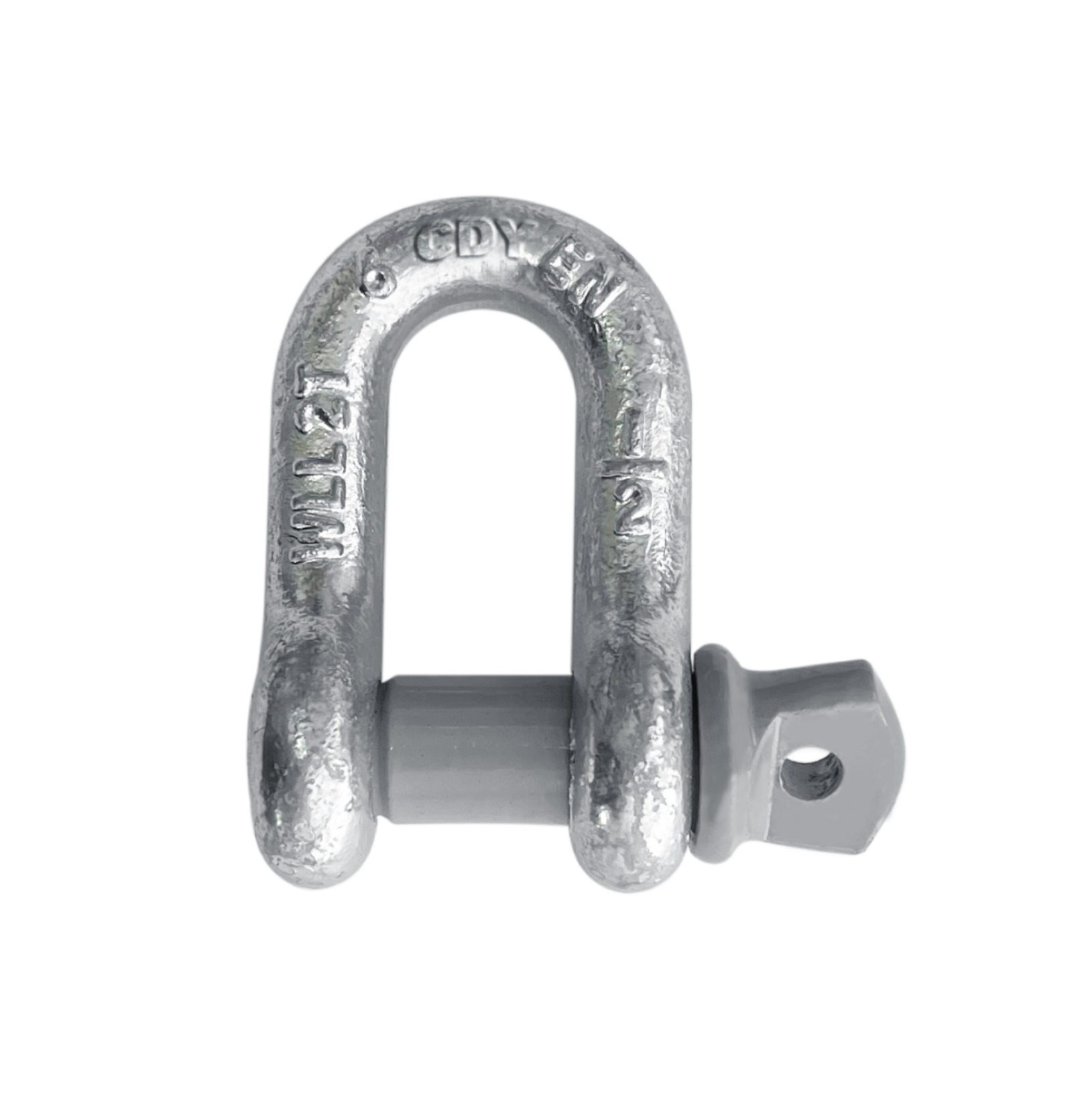

• G-4151 dee shackles with screw pin

• Meets EN13889-2009 and the performance requirements of Federal Specification

  Type IVB, Grade A, Class 2

• Maximum Proof Load is 2.2 times the Working Load Limit,

  with a minimum break force 6 times the working load limit.

• Temperature Range: -40℃ up to +200℃

• Forged - Quenched and Tempered, with alloy pins.

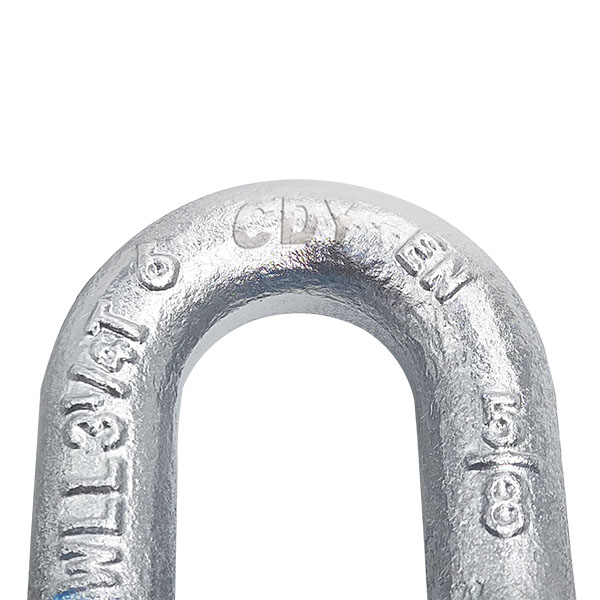

• Working Load Limit and grade “6” permanently shown on every shackle.

• Hot Dip galvanized or self colored.

• Fatigue rated.

• Shackles can be furnished proof tested with certificates to designated standards

  Charges for proof testing and certification available when requested at the time of order.

• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg.

  at -20 degrees C (-4 degrees F).
