GRADE S D SHACKLES WITH SAFETY PINS
GRADE S D SHACKLES WITH SAFETY PINS
GRADE S D SHACKLES WITH SAFETY PINS
GRADE S D SHACKLES WITH SAFETY PINS
GRADE S D SHACKLES WITH SAFETY PINS

GRADE S D SHACKLES WITH SAFETY PINS

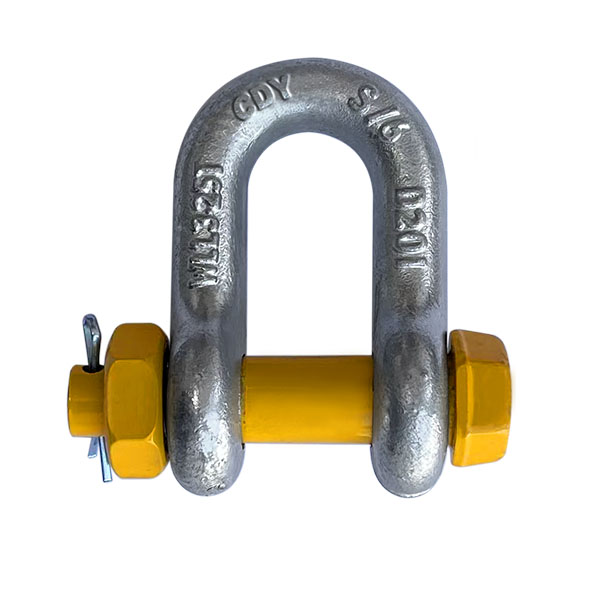

• Safety Pin Dee Shackles

• Conforms to AS2741-2002 manufactured from Grade “S” material

   Complies with Federal Specification RR-C-271F, Type IVA, Grade A, Class 3.

• All shackles undergo a stringent quality control process using ISO9001 and batch testing.

• Maximum Proof Load is 2.2 times the working load limit.

  Minimum Ultimate Load is 6 times the working load limit.

• Capacities 1/2 thru 85 metric tons.

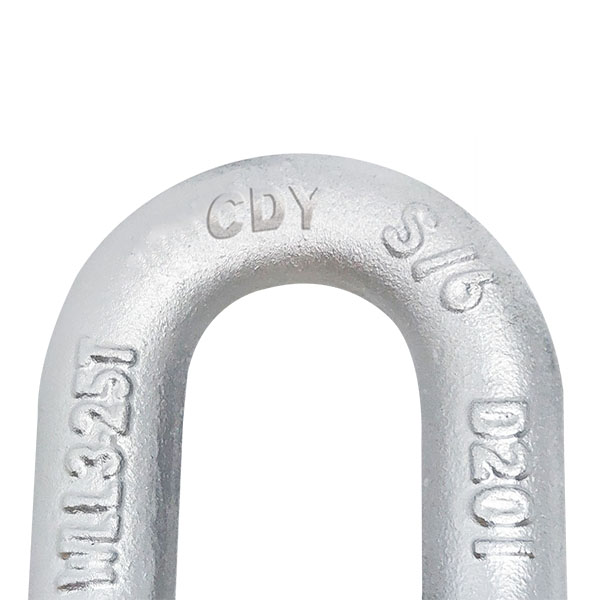

• Shackles are marked with WLL, Brand Name, Grade, Nominal Size, and Batch.

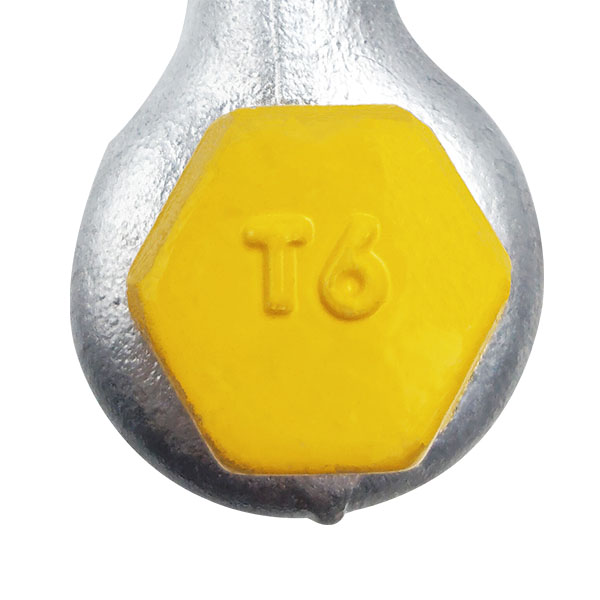

  Pins are marked with T6.

• All shackles are batch marked for traceability from manufacture to point of sale.

• Forged - Quenched and Tempered, with alloy pins.

• Hot Dip galvanized or self colored.

• Test and mill Certificates are available upon request.
